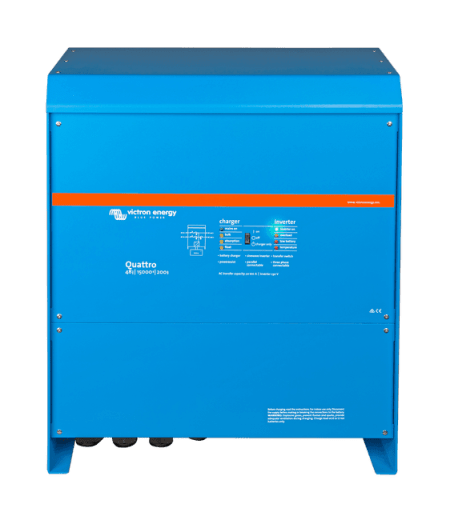

Victron Quattro 15000VA Hybrid Inverter

  • Two AC inputs with integrated transfer switch – The Quattro can be connected to two independent AC sources
  • Two AC Outputs – The main output has no-break functionality. In the event of a grid failure or generator power being disconnected, the Quattro takes over the supply to the connected loads.
  • Unique PowerAssist Feature – The Quattro will prevent overload of a limited AC source.
  • Virtually unlimited Power thanks to Parallel Operation – Up to 4 Quattros can operate in parallel to achieve a higher power output. Using  15kVA Quattros, the maximum system size is a 180kVA three phase system. Which then consists of four units on each of the three phases: 12 units in total.

Description

Victron Quattro 15000VA (15KVA)

Two AC inputs with integrated transfer switchThe Victron Quattro 15000VA can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source.Two AC OutputsThe main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.Unique PowerAssist featureThe Victron Quattro 15000VA will prevent overload of a limited AC source. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.Virtually unlimited power thanks to parallel operationUp to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.
